S866 Ebike LCD Display for 22.2mm/0.9in Handlebars with Plug, 24V 36V 48V 52V 60V Electric Bike Control Panel Speedometer Odometer for Electric Scooter Ebike Modification

Item Type: S866 LCD DisplayMaterial: ABSColor: As Pictures ShownWaterproof Grade: IP65Communication Protocol: UARTMatching Voltage: 24V 36V 48VWeight: Approx.138g/4.9ozBracket Diameter: Approx. 22.2mm/0.9inPlug: SM Plug (Ordinary Plug)Important Notice:For this S866 display, P20 is the "communication protocol & standby mode selection parameter":When P20 is set to "0": The display enables the UART No.2 protocolWhen P20 is set to "1": The display switches to the 5S protocolWhen P20 is set to "2 or 3": The display enables the UART No.2 protocolConsequence of incorrect protocol selection:If P20 is set to "0 (No.2 protocol)" but the controller uses the 5S protocol (or vice versa), the display will show the E10 error code (communication receive/transmit failure). You need to re-enter the P20 menu to switch to the corresponding protocol.Limitations of standby mode (2/3):When in standby (2/3), the display cannot show real-time speed/battery level or respond to gear adjustments. Switch back to the 0/1 protocol option to restore normal functions.Operation steps:Long-press the "+ button" to enter the P20 menuUse the "+/- buttons" to switch between options 0-3Press the "SW button" to save the selectionPress the "+ button" again to exit the menu (changes take effect immediately)Specification:Package List:1 x S866 LCD Display1 x ManualNote:Please check whether the communication agreement is the same before purchasing.

• Wide Voltage Compatibility: This S866 display is compatible with DC 24V, 36V, 48V, 52V and 60V systems, covering the power supply specs of most mainstream e-bikes and scooters for outstanding versatility

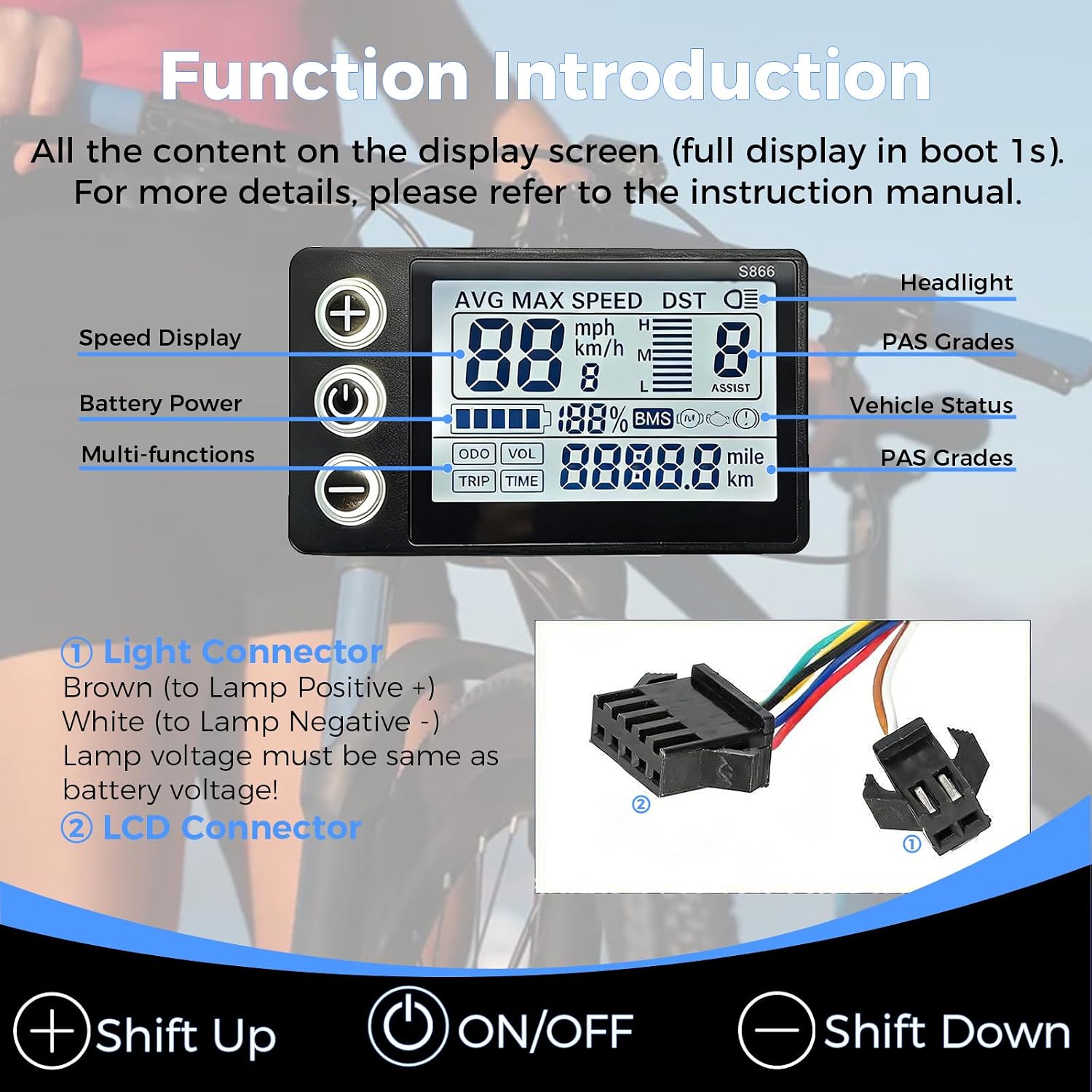

• Smart Interaction: This display clearly shows your current speed and remaining battery, while tracking both total and trip mileage. With its intuitive 3-button layout (+, -, and power), you can set wheel size, adjust backlight brightness, stay in full control of your vehicle, and enjoy a personalized riding experience
• IP65 Against Rain & Durable: Features a sealed ABS housing with an IP65 Against Rain rating. The LCD transparent window is crafted from imported high-hardness acrylic, boasting a hardness equivalent to tempered glass. Note: The connector is not waterproof
• Tool-Free Mount: This S866 display fits 22.2mm/0.9-inch handlebars and comes with an LCD screen mounting bracket for quick assembly and disassembly, perfectly matching the handlebar dimensions of most mainstream models
• 2.5-Inch Display Screen: The large LCD screen of this S866 display clearly shows speed, battery level, and mileage data. Built-in backlight ensures clear visibility even in low-light or nighttime conditions, enhancing riding safety
