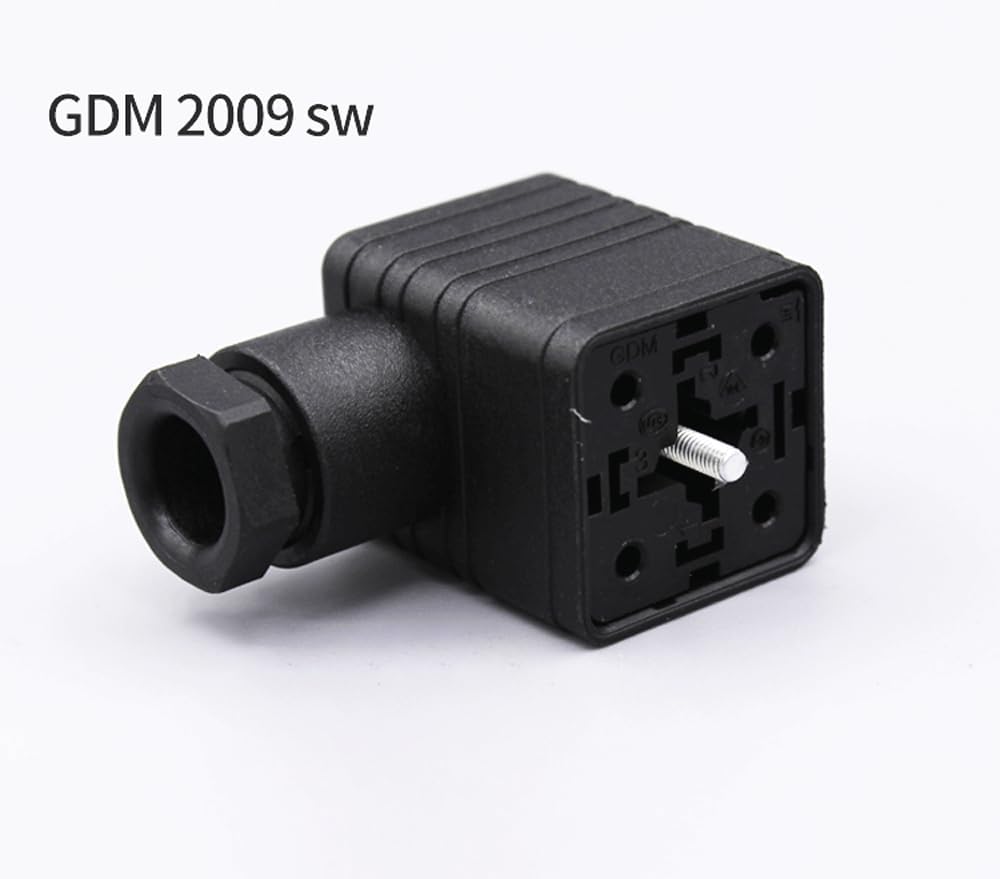

GDM2009 sw Black Solenoid Valve Plug, PG 9 Thread; Female Field Attachable, Form A, Contacts: 2+PE, 250 V | 16 A, IP65; cURus 1977 (5)
4.3 (20 items)
Limited Time SaleUS$48.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 222648451 | Release Date | 2026/05/04 | List Price | US$32.00 | Model Number | 222648451 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Family: Valve Connectors Product Sub Family: GDM Legacy Connector Type: Field Attachable Connector Design: Angled Number of Pins: 2+PE (PE across cable outlet) Coding: A Attachment Type: Central Screw Rated Voltage: 250 V Rated Impulse Voltage: 4.0 kV Rated Current: 16 A Contact Resistance: ≤ 10 mOhm Insulation Resistance: ˃ 10^9 Ohm Mating Cycles: ≤ 50 Cable Gland: PG9 Conductor Cross Section: 0.25 - 1.5 mm² Suitable Cables: Ø 4.5 - 7 mm Ambient Temperature (Operation): -40 °C - +125 °C Protection Degree / IP Rating: IP65
- Product Family: Valve Connectors, Product Sub Family: GDM Legacy, Connector Type: Field Attachable
- Connector Design: Angled, Number of Pins: 2+PE (PE across cable outlet), Coding: A, Attachment Type: Central Screw
- Rated Voltage: 250 V, Rated Impulse Voltage: 4.0 kV, Rated Current: 16 A, Contact Resistance: ≤ 10 mOhm, Insulation Resistance: ˃ 10^9 Ohm, Mating Cycles: ≤ 50, Cable Gland: PG9
- Conductor Cross Section: 0.25 - 1.5 mm², Suitable Cables: Ø 4.5 - 7 mm
- Ambient Temperature (Operation): -40 °C - +125 °C, Protection Degree / IP Rating: IP65
| Brand Name | RIWETRA |
|---|---|
| Manufacturer | RIWETRA |
| Model Number | GDM2009 J Black Solenoid Valve Plug |
| Item Dimensions | 1 x 1 x 1 inches |
| Included Components | GDM2009 J Black Solenoid Valve Plug |
